Steel E325C Travel Gearbox E329DL 267-6796

  • 1
  • 2
  • 3

Brand Name : Belparts

Model Number : E325C

Certifiion : OEM

Place of Origin : Made in China

MOQ : 1 piece

Price : Negotiable Price

Payment Terms : T/T, Paypal and Trade Assurance

Supply Ability : 1000pcs

Delivery Time : 1-7 days

Packaging Details : Wooden packing

Part Name : 267-6796

Model Name : E325C

Condition : New

Payments : T/T, PayPal, Trade Assurance

After-sales Services : Online

Contact Now

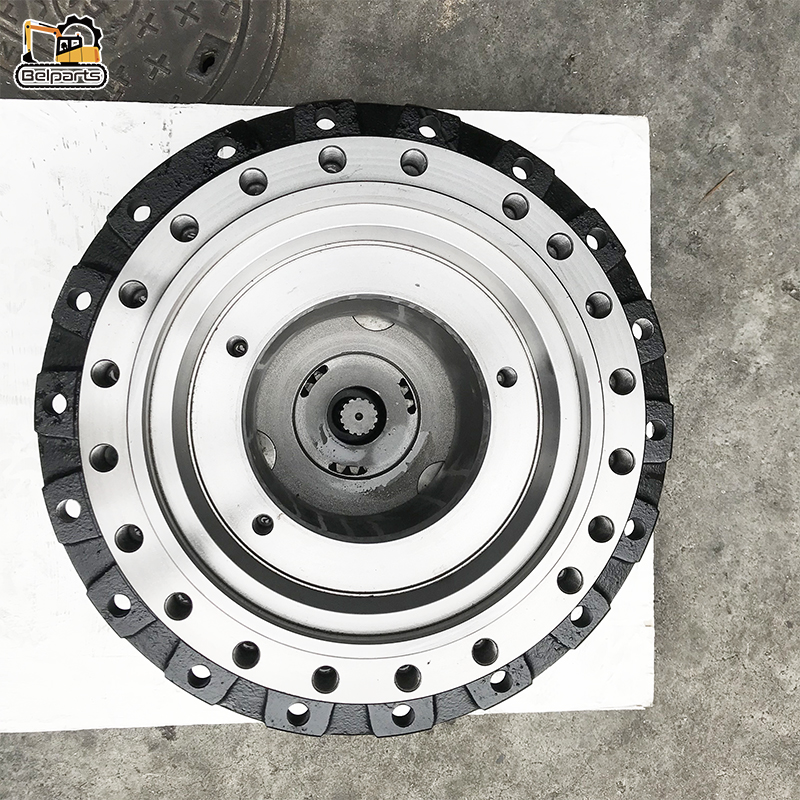

Excavator E325C travel gearbox E329DL 267-6796 hydraulic travel reduction

Appliion Excavator
Part name Belparts swing motor
Material Steel
Model E325C
MOQ 1PC
Payment term T/T, Paypal, Trade assurance, or as required
Delivery 2 days after the payment received
Shipment by sea, by air, by express, or as required

Steel E325C Travel Gearbox E329DL 267-6796

Steel E325C Travel Gearbox E329DL 267-6796

Steel E325C Travel Gearbox E329DL 267-6796

Steel E325C Travel Gearbox E329DL 267-6796

List of spare parts


Pos. Part No Qty Parts name Comments
1. 3E-2338 [2] PLUG-PIPE
2. 267-6863 BJ [1] SHIM (0.75-MM THK)
7Y-0752 BJ [1] SHIM (0.8-MM THK)
267-6864 BJ [1] SHIM (0.85-MM THK)
267-6865 BJ [1] SHIM (0.9-MM THK)
267-6866 BJ [1] SHIM (0.95-MM THK)
7Y-0753 BJ [1] SHIM (1-MM THK)
267-6867 BJ [1] SHIM (1.2-MM THK)
267-6868 BJ [1] SHIM (1.4-MM THK)
7Y-0754 BJ [1] SHIM (1.6-MM THK)
267-6869 BJ [1] SHIM (1.8-MM THK)
267-6870 BJ [1] SHIM (2-MM THK)
267-6871 BJ [1] SHIM (2.3-MM THK)
5. 094-0578 B [1] PLATE (8-MM THK)
094-0579 B [1] PLATE (9-MM THK)
094-0580 B [1] PLATE (10-MM THK)
8. 094-1528 [12] WASHER (53X84X1-MM THK)
9. 114-1540 J [4] PIN-DOWEL
10. 168-8452 J [2] BALL BEARING
11. 169-5589 [1] GEAR-SUN (24-TEETH)
12. 169-5590 [1] GEAR-SUN (24-TEETH)
13. 169-5592 [3] GEAR-PLANETARY (23-TEETH)
14. 169-5593 [3] GEAR-PLANETARY (23-TEETH)
15. 169-5601 [3] SHAFT-PLANETARY
16. 169-5602 [3] SHAFT-PLANETARY
17. 171-9387 [1] GEAR-RING (64-TEETH)
18. 191-2569 [3] BEARING AS (CAGED ROLLER)
19. 191-2570 [6] BEARING AS (CAGED ROLLER)
20. 191-2571 [1] CARRIER-PLANETARY
21. 191-2676 [1] GEAR-RING (72-TEETH)
22. 191-2683 [1] GEAR-SUN (20-TEETH)
23. 191-2684 [3] GEAR-PLANETARY (21-TEETH)
24. 191-2685 [3] BEARING AS
25. 191-2686 [1] CARRIER AS
191-2687 [3] RACE-BEARING
26. 191-2689 [3] WASHER (34X70X1-MM THK)
27. 191-2690 [3] WASHER (42.3X70X1-MM THK)
28. 199-4503 [1] COVER
29. 207-1571 J [1] SEAL GP-DUO-CONE
214-3570 [2] RING-TORIC
30. 267-6797 J [1] HOUSING-MOTOR
31. 267-6798 J [1] HOUSING
32. 267-6799 [1] CARRIER-PLANETARY
33. 267-6800 J [1] GEAR-COUPLING
43. 093-1731 [2] RING-RETAINING
44. 095-0891 [6] PIN-SPRING
45. 096-0433 [3] RING-RETAINING
46. 096-3216 M [2] SETSCREW-SOCKET (M12X1.75X12-MM)
47. 171-9298 [1] SEAL-O-RING
48. 179-8733 M [16] BOLT (M20X2.5X170-MM)
49. 7M-8485 [2] SEAL-O-RING
50. 7Y-0595 [3] SPACER (58X79.6X6-MM THK)
51. 7Y-5217 JM [16] BOLT-SOCKET HEAD (M20X2.5X70-MM)
52. 8T-3282 J [16] WASHER-HARD (22X35X3.5-MM THK)
53. 8T-4123 [16] WASHER (22X35X3.5-MM THK)
54. 9X-6032 M [12] BOLT-SOCKET HEAD (M10X1.5X30-MM)
55. 1U-8846 B SEALANT-GASKET
AVAILABLE REPAIR KIT(S):
267-6818 J [1] KIT-FINAL DRIVE BEARING
B USE AS REQUIRED
J KIT MARKED J SERVICES PART(S) MARKED J
M METRIC PART
